The LP28052H is a complete constant-current/constant voltage linear charger for single cell lithium-ion batteries. Its ESOP8 package and low external component count make the LP28052H ideally suited for portable applications. Furthermore, the LP28052H is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The LP28052H automatically terminates the charge cycle when the charge current drops to 1C/10th the programmed value after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the LP28052H automatically enters a low current state, dropping the battery drain current to less than 1µA. Other features include charge current monitor, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.

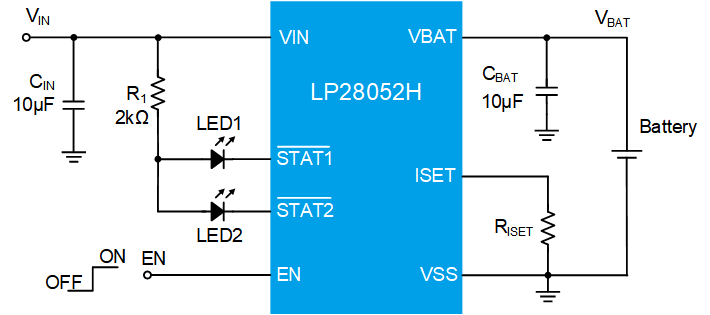

应用
◆ Portable Media Players/MP3 players ◆ Cellular and Smart mobile phone ◆ PDA/DSC ◆ Bluetooth Applications
数据参数
数据参数
最大充电电流(mA)
1000
工作电压(V)
4.5~8
过压保护
-
电池电压(V)
4.2
温度检测
-
使能控制
Y
充满指示
Y
充电状态指示
Y
电源状态指示
-
电池节数
1
产品特征/功能
CTC,NTC,OTP,OVP,OCP
封装
ESOP8
特征
特征
◆ Protection of Reverse Connection of Battery ◆ Programmable Charge Current Up to 1000mA ◆ No MOSFET, Sense Resistor or Blocking Diode Required ◆ Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating ◆ 1µA Supply Current in Shutdown ◆ Drainage Charge Current Thermal Regulation Status Outputs for LED or System Interface Indicates Charge and Full ◆ ESOP-8 Package ◆ RoHS Compliant and 100% Lead (Pb)-Free
