概述
The LP28056 is a complete constant-current/constant- voltage linear charger for single cell lithium-ion batteries. Its ESOP-8 package and low external component count make the LP28056 ideally suited for portable applications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V/4.35V, and the charge current can be ISE Trammed externally with a single resistor. The LP28056 automatically terminates the charge cycle when the charge current drops to 1/10th the ISET rammed value after the final float voltage is reached.
When the input supply is removed, the LP28056 automatically enters a low current state, dropping the battery drain current to less than 1µA. The LP28056can be put into shutdown mode, reducing the supply current to 1µA. Other features include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.

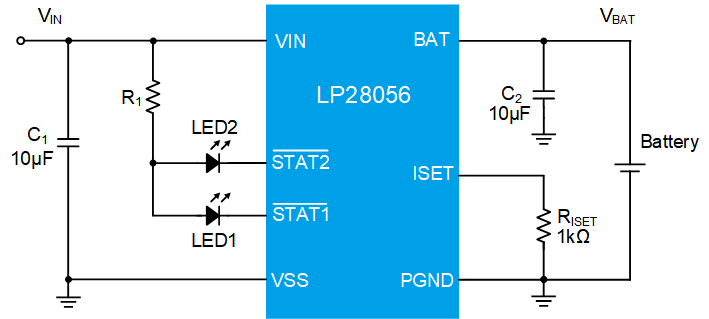

应用
◆ Portable Media Players/MP3 players
◆ Cellular and Smart mobile phone
◆ PDA/DSC
◆ Bluetooth Applications
数据参数
数据参数
最大充电电流(mA)
1200
工作电压(V)
4.5~8
过压保护
-
电池电压(V)
4.2/4.3
温度检测
-
使能控制
-
充满指示
Y
充电状态指示
Y
电源状态指示
-
电池节数
1
产品特征/功能
CTC,1A Large current,OTP,OCP
封装
ESOP8
特征
特征
◆ Very Low Power Dissipation
◆ Short-circuit protection
◆ Protection of Reverse Connection of Battery
◆ Programmable Charge Current Up to 1200mA
◆ No MOSFET, Sense Resistor or Blocking Diode Required
◆ Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
◆ 1µA Supply Current in Shutdown
◆ Drainage Charge Current Thermal Regulation Status Outputs for LED or System Interface
◆ Indicates Charge and Full
◆ Optional Battery Temperature Monitoring Before and During Charge Automatic Sleep Mode for Low-Power
◆ Consumption Available in ESOP-8 Package
◆ RoHS Compliant and 100% Lead (Pb)-Free
