800mA Standalone Linear Li-Ion Battery Charger with Dual LED Display
规格书下载
转存邮件
LP4061
转存邮件
概述
The LP4061 is a complete constant-current constant- voltage linear charger for single cell lithium-ion batteries. Its SOT 23-6 & TDFN-8 package and low external component count make the LP4061 ideally suited for portable applications. Furthermore, the LP4061 is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The LP4061 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. Other features include charge current monitor, under-voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.

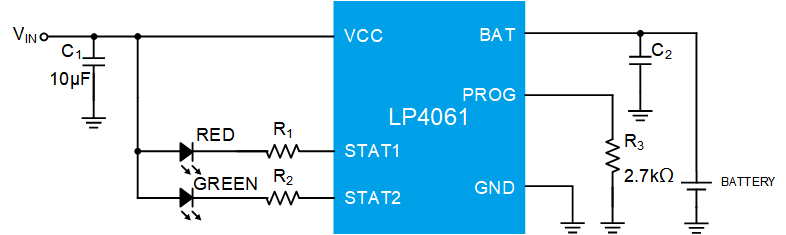

应用
◆ Portable Media Players/MP3 players ◆ Cellular and Smart mobile phone ◆ PDA/DSC ◆ Bluetooth Applications
数据参数
数据参数
最大充电电流(mA)
800
工作电压(V)
4.35~8
过压保护
-
电池电压(V)
4.2
温度检测
-
使能控制
-
充满指示
Y
充电状态指示
Y
电源状态指示
-
电池节数
1
产品特征/功能
CTC,Dual LED display,Low size,OTP
封装
SOT23-6/DFN-8(2*2)
特征
特征
◆ Programmable Charge Current Up to 800mA ◆ No MOSFET, Sense Resistor or Blocking Diode Required ◆ Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize ◆ Charge Rate Without Risk of Overheating ◆ Charges Single Cell Li-Ion Batteries Directly from USB Port ◆ Charge Voltage with ±1% Accuracy ◆ Available in SOT23-6 & TDFN-8 2mmx2mm Package ◆ Charge Current Monitor Output for Gas Gauging ◆ Automatic Recharge ◆ 2.9V Trickle Charge Threshold ◆ C/10 Charge Termination
