The LP6301 is a 1.5MHz constant frequency current mode PWM step-down converter. integrates main switch and synchronous rectifier switch. The LP6301 integrates two operation modes, PWM control and PFM mode switching control, which allows a high efficiency over the wider range of the load. It is ideal for portable equipment which requires very high current up to 1A from single-cell Lithium-ion batteries. The LP6301 also can run at 100% duty cycle for low dropout operation,extending battery life in portable systems while light load operation provides very low output ripple for noisy sensitive applications.The LP6301 can supply up to 1A output load current from an input voltage 2.5V to 5.5V and the output voltage can be regulated as low as 0.61V. The high switching frequency minimizes the size of external components while keeping switching losses low. The internal slope compensation setting allows the device to operate with smaller inductor values to optimize size and provide efficient operation.

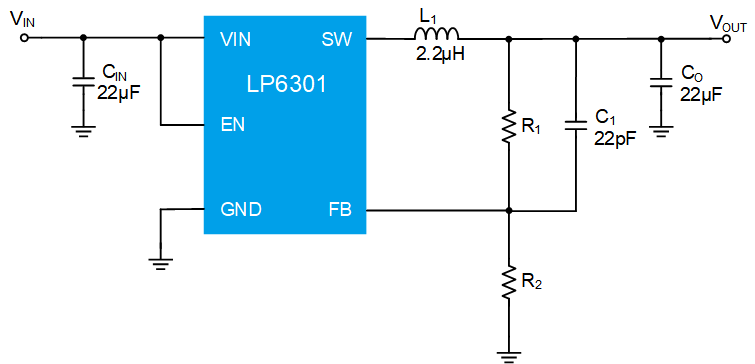

应用
◆ Portable Instruments ◆ DSP Core Supplies ◆ Cellular Phone and Smart mobile phone ◆ PDA ◆ GPS Applications
数据参数
数据参数
输入电压(V)
2.5~5.5
输出电压(V)
0.6~5.5
FB电压（V）
0.6
电压精度
±2%
工作频率(Hz)
1.5M
最大输出电流(A)
1.5
输出通道数量
1
工作模式
Syn.
EN控制
Y
轻负载模式
PFM/PWM
产品特征/功能
100% Duty,Internal Soft Start,OCP,SCP,OTP
封装
DFN-6(2*2)
特征
特征
◆ Input Voltage Range: 2.5V to 5.5V ◆ Output Voltage Range: 0.61V to VIN ◆ 1A Output Current ◆ High Efficiency: Up to 96% ◆ 100% Duty Cycle in Dropout ◆ Low Shutdown Current: <1uA ◆ 1.5MHz Switching Frequency ◆ Soft-star Function ◆ Short Circuit Protection ◆ Thermal Fault Protection ◆ TDFN-6 Package ◆ RoHS Compliant and 100% Lead/ Halogen -Free
