The LP3318 is a boost DC-DC converter. Its PWM circuitry with built-in 1.5A current power MOSFET makes this converter highly power efficiently. The LP3318 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. The LP3318 features automatic shifting to pulse frequency modulation mode at light loads.Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP3318 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP3318 is available in a small 5-pin SOT23-5package.

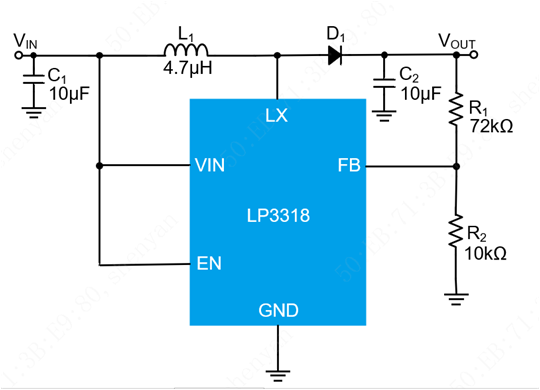

应用
◆ Battery products ◆ Host Products ◆ Panel
数据参数
数据参数
输入电压 (V)
2.7~6
最大输出电压(V)
36
工作模式
Boost
LED通道数
-
驱动LED数量(pcs)
-
开关电流(A)
1.5
开关频率 (Hz)
1M
FB电压(mV)
1230
亮度调节
PWM
过压保护(V)
-
产品特征/功能
Low size,Small EMI
应用
Bias
封装
SOT23-5
特征
特征
◆ 2.7V-6V Input voltage ◆ Up to 94% efficiency ◆ Shut-down current:<1uA ◆ Output voltage Up to 36V ◆ Internal Compensation, Soft-start ◆ 1MHz fixed frequency switching ◆ High switch on current:1.5A ◆ Available in SOT23-5 Package
