概述
The LP6261S device is a synchronous boost convertor with ultra-low quiescent current. It features a true-shutoff function that disconnects the input and output during shutdown and output short-circuit conditions.The LP6261S only consumes 1uA quiescent current under light load condition and can achieve up to 75% efficiency at 20uA load. It can achieve up to 93% efficiency at 200mA load from 3.3 V to 5V conversion.
应用
◆ Tablet, MID
◆ Smart Phone
◆ Power Bank
数据参数
数据参数
输入电压(V)
1.0~5.0
最高输出电压(V)
5.5
工作频率 (Hz)
1.2M
开关管电流(mA)
1000
欠压锁定
Yes
FB电压(V)
1.36
5V带载电流
0.5A
特点
Syn.,Low Quiescent,High efficiency,No discharge

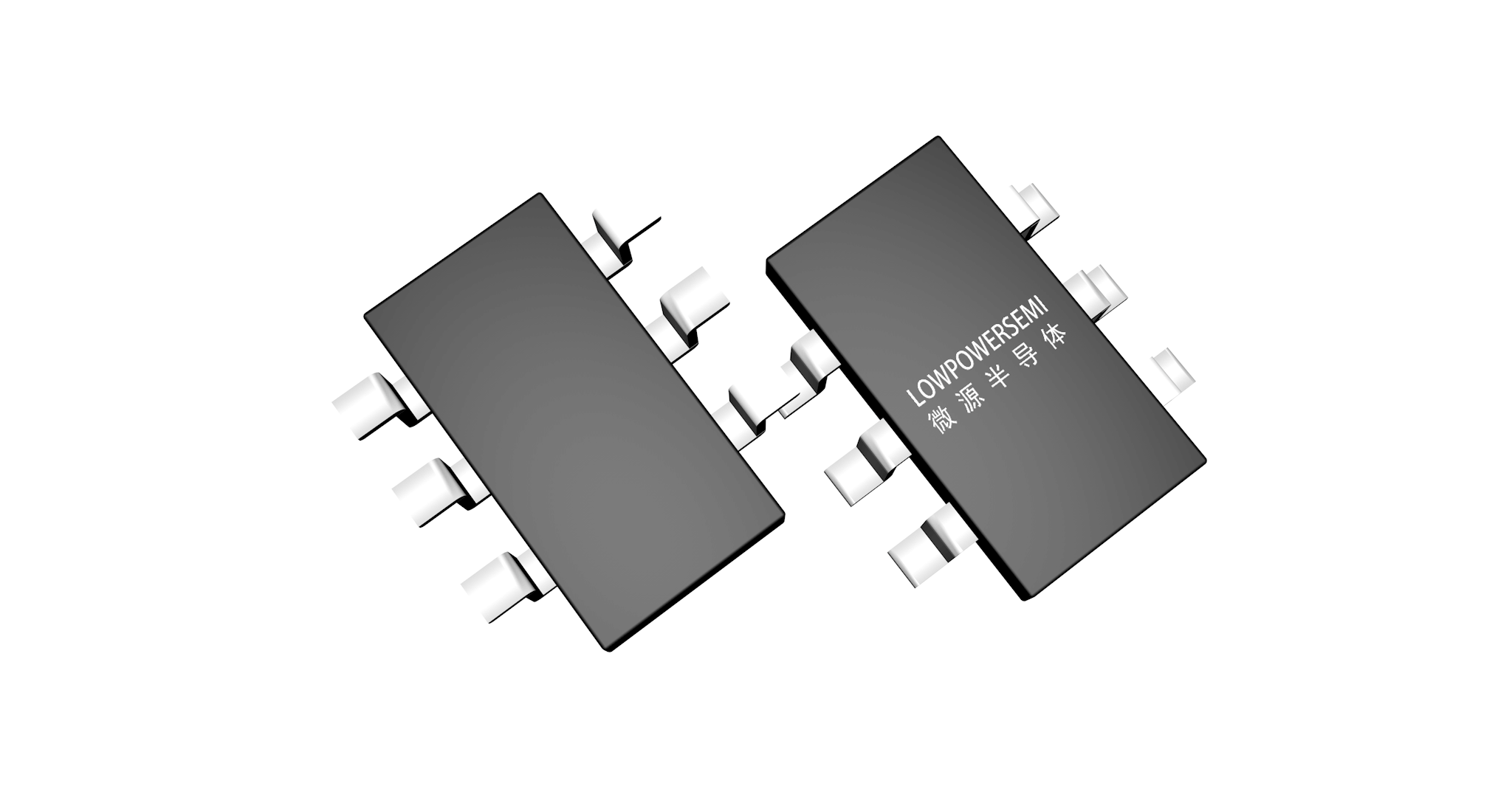

封装
SOT23-6
特征
特征
◆ 5.1V output voltage
◆ Up to 95% efficiency
◆ Output to Input Disconnect at Shutdown Mode
◆ Shut-down current:<0.1uA
◆ Over Output Voltage Protection
◆ Over Current Protection
◆ Over Temperature Protection
◆ Internal Compensation of Soft-start
◆ 1.2MHz fixed frequency switching
◆ RoHS Compliant and 100% Lead (Pb)-Free
