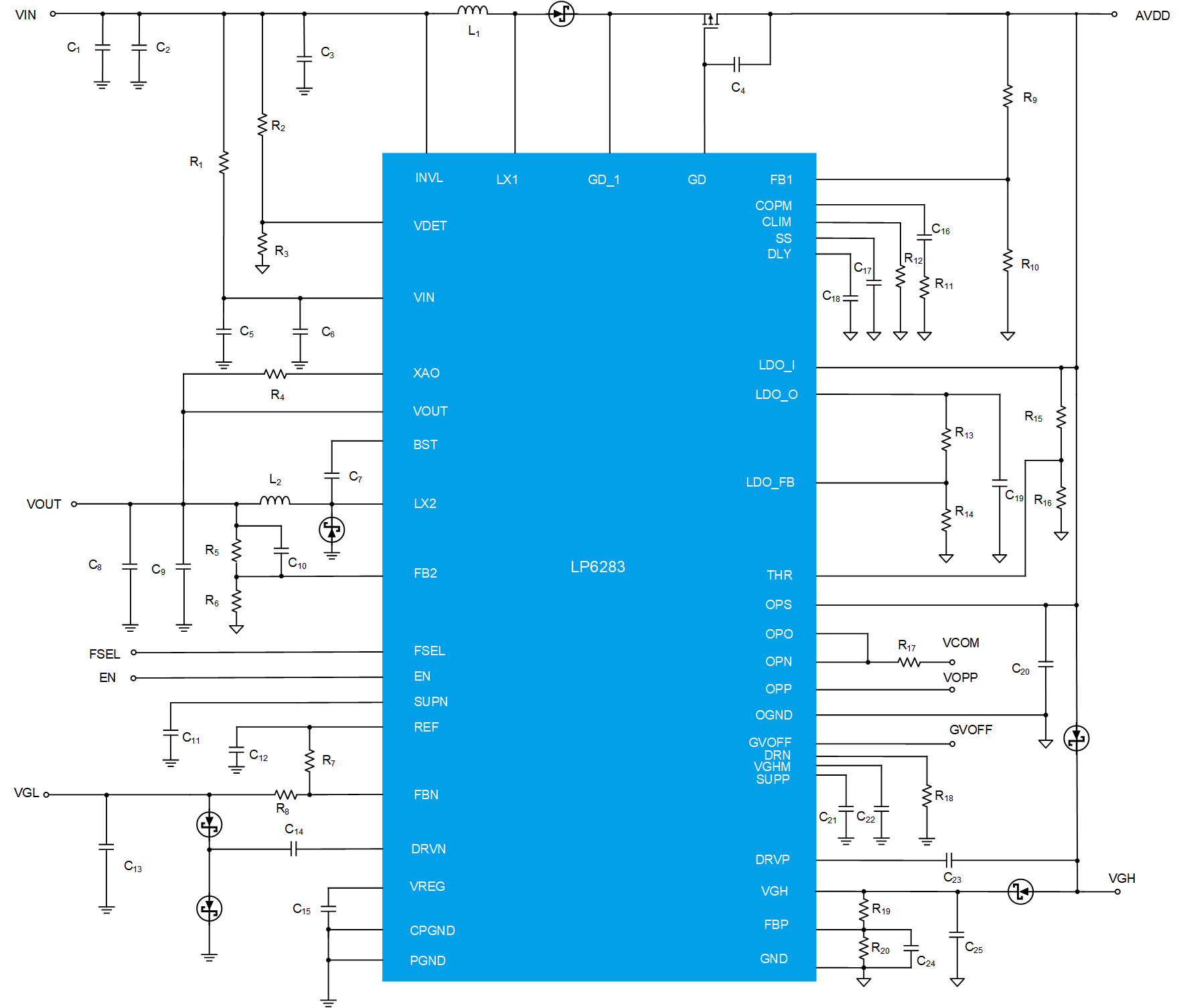

The LP6283 generates all the supply rails for thin-film transistor (TFT) liquid-crystal display (LCD) panels in TVs and monitors. It includes boost and buck regulators, VGH and VGL charge pump regulators, gate pulse modulator (GPM) , HV LDO, voltage detector (XAO) and VCOM OP.
The LP6283 supports input voltage from 8V to 14V and is optimized for LCD TV panel and LCD monitor applications running directly from 12V supply.
The boost and buck regulators feature internal power MOSFETs and high-frequency operation, allowing the use of small inductors and capacitors, for in a compact solution. Both switching regulators use fixed-frequency, current-mode control architectures, providing fast load-transient response and easy compensation.
The VGH and VGL charge-pump regulators provide supply voltages for the TFT gate driver. Both output voltages can be adjusted with external resistive voltage dividers.
