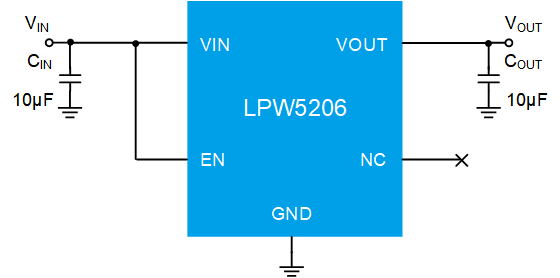

The LPW5206 is an integrated power switch for self-powered and bus-powered Universal Series Bus (USB) applications. A built-in charge pump is used to drive the N-Channel MOSFET that is free of parasitic body diode to eliminate any reversed current flow across the switch when it is powered off. Its low quiescent current (30μA) and small package (SOT23-5) is particularly suitable in battery-powered portable equipment. Several protection functions include soft start to limit inrush current during plug-in, current limiting at 600mAto meet USB power requirement, and thermal shutdown to protect damage under over current conditions.
应用
◆ Power Switch ◆ USB Device ◆ Battery Charger Circuits
数据参数
数据参数
输入电压 (V)
2.5~6
内阻(mΩ)
160
静态电流(uA)
16
输出电流(mA)
600
FLAG指示
N
快速放电功能
N
通道数量
1
产品特征/功能
Low Rdson,SS,OTP
封装
SOT23-5
特征
特征
◆ 160mΩ Low RDS(ON), High-side N-MOSFET ◆ Guaranteed 600mA Continuous Current ◆ 2.5V to 6V Input Voltage ◆ Low Quiescent Current:30μA ◆ Soft Start Function ◆ Built-In Short-Circuit Protection ◆ Built-In Thermal Protection ◆ RoHS Compliant and 100% Lead(Pb)-Free
