10-Channel Level-Shift with Charge Sharing for GOP Panel
规格书下载
转存邮件
LP6297B
转存邮件

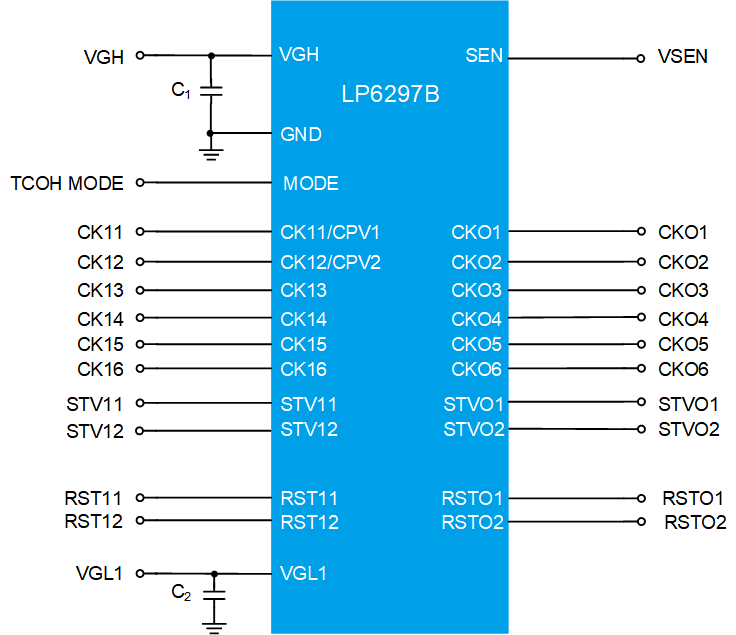

概述
The LP6297B is a 10-CH high voltage level shifter for TV and monitor LCD applications. It converts logic level signals from Timing Controller (T-CON) to high level signals used by the LCD panel. The outputs are switching from VGL to VGH, with capacitive loads up to 5nF. Other features include thermal shutdown protection and under-voltage lockout (UVLO).The LP6297B is available in QFN-32 (0.4mm pitch) package.
应用
◆ TFT for NB Using GOP/IPS Technology ◆ TFT for Monitors Using GOP/IPS Technology ◆ TFT for TV Using GOP/IPS Technology
数据参数
数据参数
输入电压(V)
-20~40
通道数(CH)
10
CLK通道
6
高电平电压(V)
40
低电平电压(V)
-20
输出阻抗(Ω)
11
工作频率(Hz)
500K
特点
TCON MODE Select 1-to-1 or 2-to-6 input/output control
封装
TQFN-32 (4*4)
特征
特征
◆ -20V to 40V High Output Level ◆ Support Two Kinds of TCON Input Signals TCON Mode 0 TCON Mode 1 ◆ High Output Slew Rate to Drive Up to 5nF Load ◆ Over Temperature Protection ◆ Available in QFN-32 (4×4mm) ◆ RoHS Compliant and Halogen Free ◆ Pb-Free Package
