概述

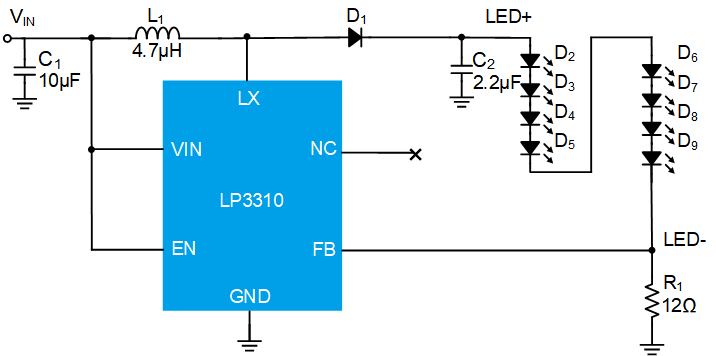

The LP3310 is a 1.0MHz PWM boost switching regulator designed for constant-current white LED driver applications. The LP3310 can drive a string of up to 8 white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors. The LP3310 implements a constant frequency 1.0MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. To improve efficiency, the feedback voltage is set to 250mV, which reduces the power dissipation in the current setting resistor. Highly integration and internal compensation network minimizes as 5 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency.
应用
◆ WLED Backlight driver
◆ OLED Backlight driver
◆ PDA
◆ MID/PTV
数据参数
数据参数
输入电压 (V)
2.7~24
最大输出电压(V)
28
工作模式
Boost
LED通道数
1
驱动LED数量(pcs)
3S24P
开关电流(A)
4
开关频率 (Hz)
1M
FB电压(mV)
250
亮度调节
PWM
过压保护(V)
28
产品特征/功能
OVP,OTP,Constant current,Low size,1%dimming
应用
Backlight
封装
SOT23-6/DFN-6(2*2)
特征
特征
◆ Input voltage Range: 2.7V to 24V
◆ Up to 94% efficiency
◆ Shut-down current:<1uA
◆ Output voltage Up to 28V
◆ Support down to 1% Dimming Duty Cycle
◆ Internal Compensation, Soft-start
◆ 1.0MHz fixed frequency switching
◆ High switch on current:4A
◆ Available in SOT23-6&TDFN-6 Package
