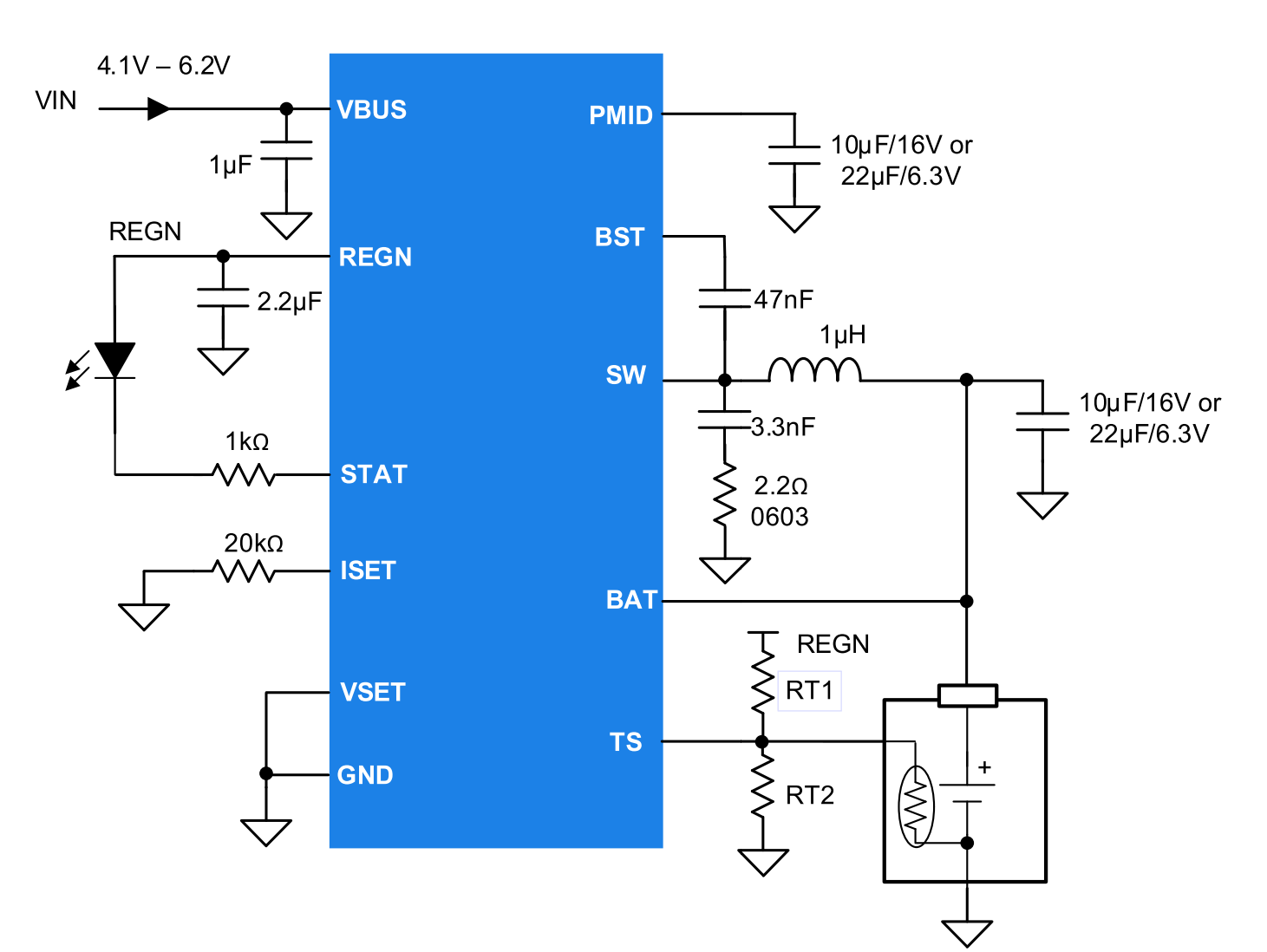

The LP4034 is astandalone 1-cell switching battery charger providing up to 3.5A charge current to the battery from 4.1V to 6.2V input voltage. The charge current is programmable by a resistor connected from ISET to GND and the charge voltage is programmable by a resistor connected from VSET to GND. The charge can be enabled and disabled from lSET pin. The LP4034 operates at 1.2MHz switching frequency allowing a small-size 1uH inductor for 3.5A fast charging. The patent-protected integrated current sensing technique eliminates external sensing resistor allowing very high charge efficiency, low BOM cost and small footprint. The precharge, fastcharge and termination current accuracy is competitive external-resistor-based current compared to
sensing architecture. LP4034 is available in DFN3x3-10 package.
